Healthmate Jr. Machine (Junior Unit)

• REPLACE FILTERS EVERY 5 YEARS

• WHATS IN THE BOX

  • Austin Air Healthmate Jr.

  • Qty. 1 Pre-Filter (not an extra)

  • Qty. 1 Air Filter (not an extra)

  • Product Literature

• GENERAL INFO

  • GOOD FOR EVERY DAY AIR QUALITY CONCERNS

  • PROUDLY MADE IN AMERICA "

  • UP TO 700 SQ. FT. OF COVERAGE AREA

  • 360 DEGREE DESIGN RESULTS IN BETTER AIR QUALITY FOR YOUR WHOLE SPACE

  • EXCELS AT THE REMOVAL OF BOTH PARTICULATE AND ODORS

  • 4 STEP FILTERS REMOVES 99.97% OF ALL AIRBORNE PARTICULATE

• WARRANTY AND DOCUMENTS

  • 5 YEARS PARTS AND LABOR

  • 5 YEAR PRO RATED FILTER GUARANTEE (residential use only)

  • Owner's Manual

  • Health Mate Jr. Technical Information

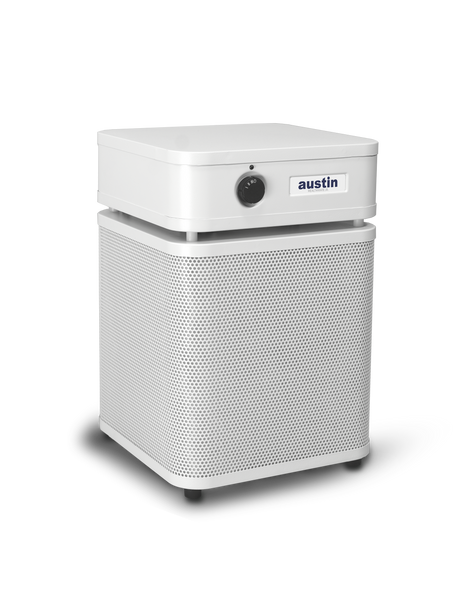

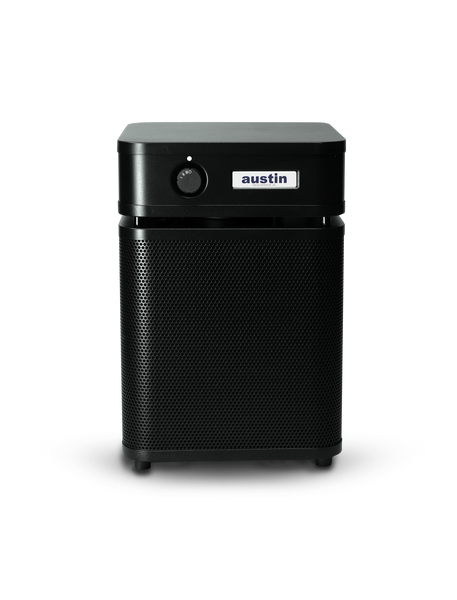

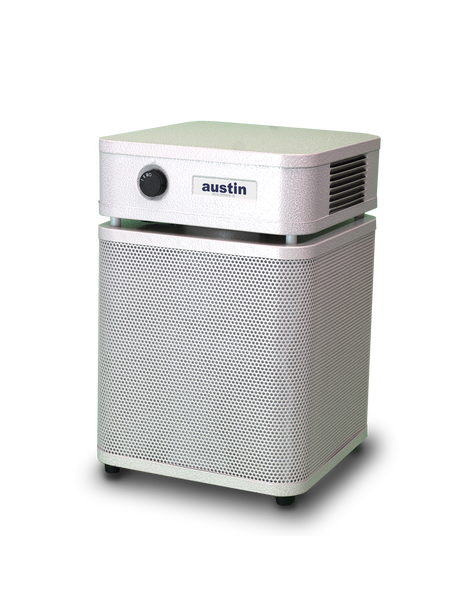

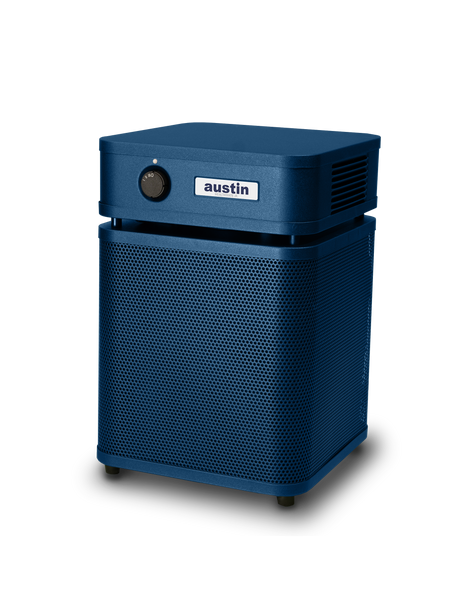

The Austin Air HealthMate Jr. is a unit which cleans up to 6.5 lbs. of Carbon-Zeolite mix and True Medical HEPA filter media for adsorption of odors and gases. See all features of the HealthMate Jr. air purifier below.

Featured HEPA Filtration Technology

1. Specialty air cleaner with 30 sq. ft. of medical HEPA, certified to remove 99.97% of airborne particles 0.3 microns or larger.

2. Contains 7 pounds of granular carbon and zeolite for the adsorption of odors, gasses and chemicals.

3. Stands 16.5" tall and 11" wide. Effectively cleans an area of 700 sq. ft. (with normal ceiling heights).

• Solid steel construction
• Powder-coated paint
• Energy saving PSC motor
• Engineered airflow creating the clean air pocket™
• 30-Day money back guarantee
• 5-Year warranty on all parts and labor*
• 5-Year pro-rated filter guarantee*
• *See Owner's Manual for details.

Technical Specifications

• Height: 16.5"; Width: 11"x11"
• Weight: 18 lbs.
• Perforated steel intake housing (filter deck); 360°
• Air flow output from upper deck, directed one side
• Bottom plate easily removed for filter access
• Baked-on powder coat finish

Filter assembly

• 9.5" diameter, 11.25" height
• 30 sq. ft. true HEPA medical filter medium
• 6.5 lbs. mixture of solid activated carbon and zeolite
• Meets HEPA standards, trapping 99.97% of all particulates larger than 0.3 microns
• Foam sealing gaskets top and botton
• Total weight 8 lbs

PERMAFILT Prefilter

• Traps larger dust particles
• Designed to be vacuumed from outside and eliminate costly 3 month filter changes

Fan and Motor Assembly

• Centrifugal fan
• 3 Speed control switch
• Power rating: 1.2 amp, 120 volts
• 132 Watt power consumption at highest setting
• Motor type: high efficiency shaded pole motor rated for continuous high RPM, long life duty
• Motor mounted on shock absorbers
• CSA and UL approved

Fan Rating

• 200cfm on high setting
